Stainless steel Internal Cooling Twist Drill 5D Carbide Bits 6 Shank Diameter For Cast Iron
DM5D020
Precio unitario
THB 1581,00
/pc
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
THB 1581,00
Opciones
กรุณาเลือกประเภท กรุณาเลือกประเภท
Costo total
THB 1581,00
Cantidad
/pc
1

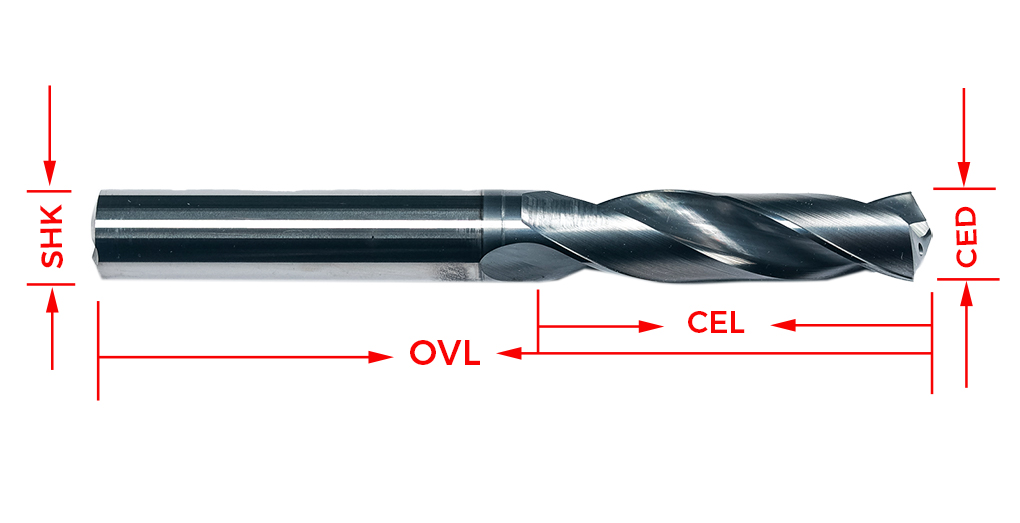

Stainless steel Internal Cooling Twist Drill 5D Carbide Bits 3/4 Shank Diameter For Cast Iron
Suitable for drilling cast iron of automobile industry and other industries.
Wave formed cutting lips provides lowered machining torque.
Four margin design, improves hole wall quality and accuracy.
Increased Drills point strength through optimized chisel edge.
Material: Tungsten Carbide
Type: Twist Drill Bit
Cooling Method: External Cooling
Use: Metal Drilling
Remark: Please Choose the Model when ordering.
| Model | D(mm) | l/d(mm) | L1(mm) | L2(mm) | D2 |
| DM5D020 | 2 | 5D | 16 | 50 | 3 |
| DM5D021 | 2.1 | 5D | 22 | 50 | 3 |
| DM5D022 | 2.2 | 5D | 22 | 50 | 3 |
| DM5D023 | 2.3 | 5D | 22 | 50 | 3 |
| DM5D024 | 2.4 | 5D | 22 | 50 | 3 |
| DM5D025 | 2.5 | 5D | 22 | 50 | 3 |
| DM5D026 | 2.6 | 5D | 22 | 50 | 3 |
| DM5D027 | 2.7 | 5D | 22 | 50 | 3 |
| DM5D028 | 2.8 | 5D | 22 | 50 | 3 |
| DM5D029 | 2.9 | 5D | 22 | 50 | 3 |
| DM5D030 | 3 | 5D | 25 | 60 | 3 |
| DM5D031 | 3.1 | 5D | 27 | 60 | 4 |
| DM5D032 | 3.2 | 5D | 27 | 60 | 4 |
| DM5D033 | 3.3 | 5D | 27 | 60 | 4 |
| DM5D034 | 3.4 | 5D | 30 | 65 | 4 |
| DM5D035 | 3.5 | 5D | 30 | 65 | 4 |
| DM5D036 | 3.6 | 5D | 30 | 65 | 4 |
| DM5D037 | 3.7 | 5D | 30 | 65 | 4 |
| DM5D038 | 3.8 | 5D | 33 | 71 | 4 |
| DM5D039 | 3.9 | 5D | 33 | 71 | 4 |
| DM5D040 | 4 | 5D | 33 | 71 | 4 |
