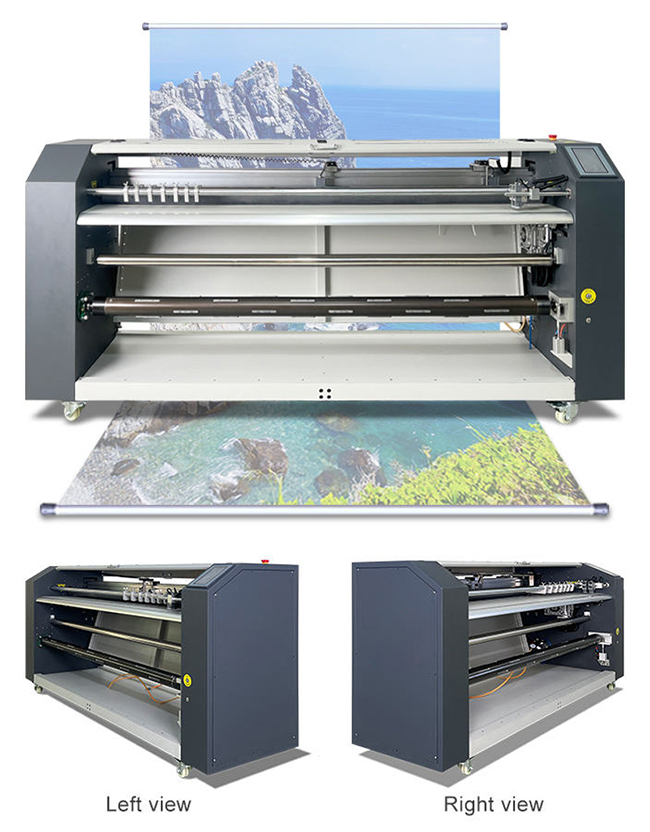

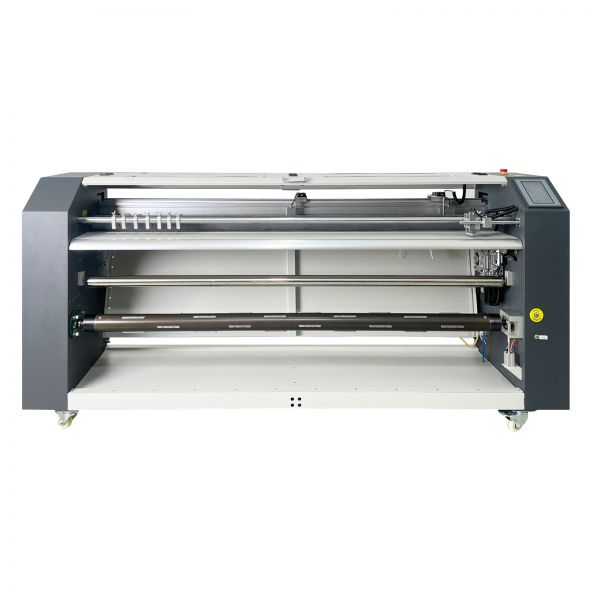

XY1650 High-Precision Automatic XY Cutter Roll to Cutter Digital XY Trimmer Paper Cutting Machine
Precio unitario
THB 250.862,00
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
THB 250.862,00
Costo total
THB 250.862,00
Cantidad
/unidad
1
XY1650 High-Precision Automatic XY Cutter Roll to Cutter Digital XY Trimmer Paper Cutting Machine
Features:
Smart touch screen
Touch screen, easy to operate.
Double roller feeding
The use of roller feeding mode, suitable for more materials, make the material more flat, prevent.
Servo motor
High accuracy, strong power, high efficiency, to ensure the accuracy of cutting.
Standard with more vertical knife cutting
Aluminum alloy tool holder solid and durable.
High-precision color marker sensor
Horizontal and vertical bidirectional correction identification, timely correction of the picture, correction and cutting.

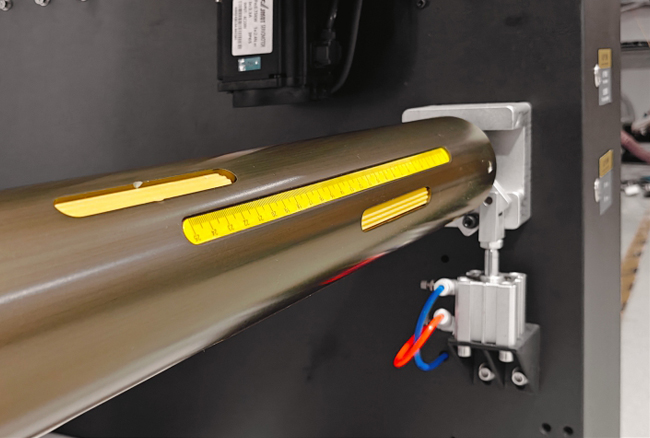

The air expansion shaft
The air expansion shaft is more convenient, the material is not easy to deciate, and the cutting is more accurate.
Self grinding transverse hob
Tungsten steel blade, sharp and durable.
Specificatuon:
| Voltage | 220V |
| Power | 1300W |
| Frequency | 50Hz-60Hz |
| Atmospheric pressure | 0.5Mpa |
| Maximum transfer speed | 30m/min |
| Maximum cutting cross-section | 1650mm |
| Minimum cutting width | 20mm |
| Weight | 280kg |

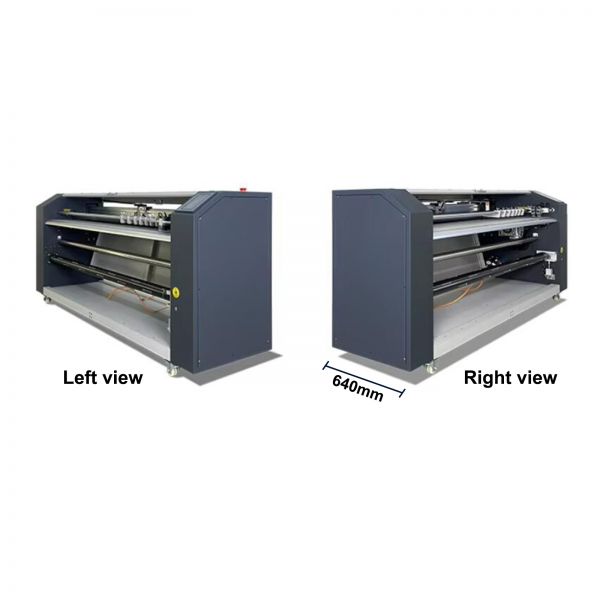

| Machine size | 2300x640x1100mm |
| Carton size | 2380x760x1440mm |

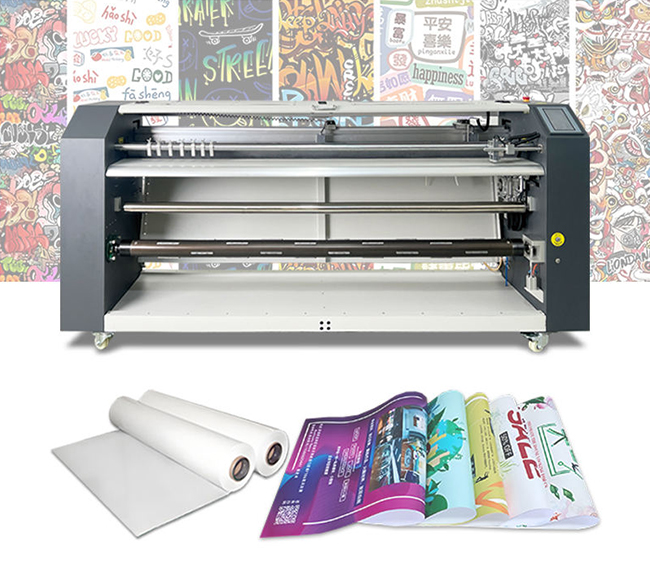

Scop of appclication:
Appclication:
Certification:
